home automation system touch screen / wall-mounted / KNX
VS00 SERIES Eelectron

{{requestButtons}}

Characteristics

  • Applications:

    for home automation systems

  • Installation:

    wall-mounted

  • Other characteristics:

    KNX

Description

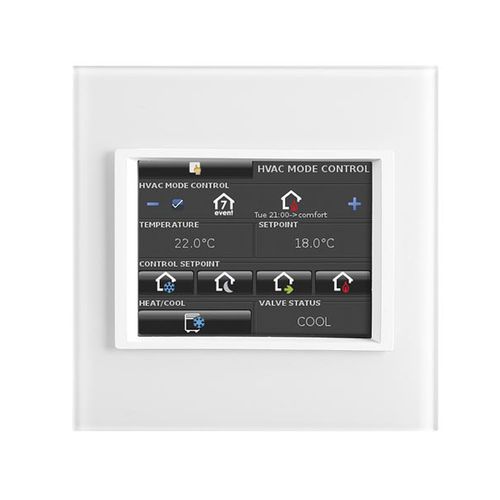

The touch panel is equipped with a 3,5 inches coloured display; dimming, status, values, lighting, shutters and timers are controlled and password protected when needed. Using the embedded temperature sensor and the embedded room temperature controller function is possible to manage valves, fancoil or other HVAC equipments. RGB coloured Led or lights are controlled with dedicated control elements and a proper KNX interface (DMX, 1-10V and DALI available); The device includes a number of pre-programmed logic including control of electrical loads with automatic power-off priority, (this feature is available in combination with eelectron KNX power measuring device). Available in various colours and finishes is based on Linux OS but can be programmed using only ETS without any additional SW. Device is equipped with KNX communication interface.
