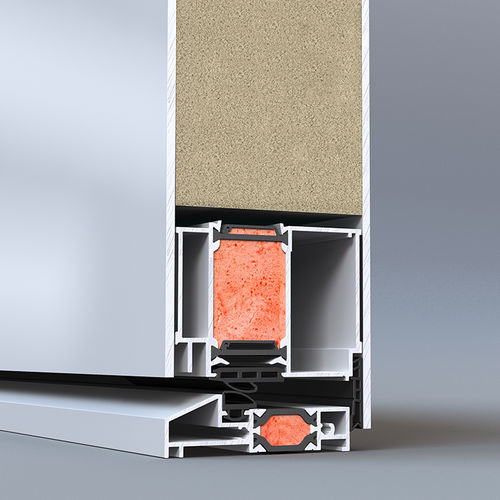

Aluminum door profile XCLUSIVE 88I2

thermally-insulated

The NEW Entrance System XCLUSIVE 88i2 sets new standards in Energy Efficient Doors, offeringcountless design options with a basic depth of only 77mm. FEATURES AND BENEFITS OUTSTANDING THERMAL INSULATION Uf :> 1.69 W/m2K Ud* : 1.2 W/m2K with panel 28mm (Up: 1.0) Ud* : 0.95 W/m2K with panel 77mm (Up: 0.6) Three insulation levels: • Optimized foam-filled insulation zone (ELVIAL I2 Technology) that ensures excellent isothermal flow of the window. • Multi-chamber polyamide bars, maximum size 34mm with glass fibers reinforcement 25%, (PA6.6 25 GF), for excellent insulation and extra rigidity. • Specially designed central gasket with 5 cavities that covers all the polyamide surface andglazing/panel gaskets with fins, for effective heat transfer minimization.
