Interlocking roof tile LINEA®

flatlargeclay

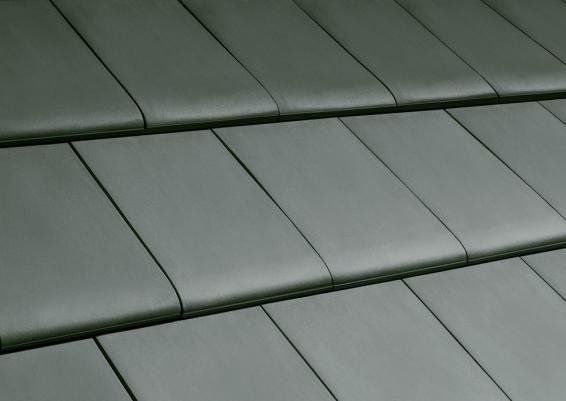

Ergoldsbacher Linea ® – Smooth, pure, solid. The winner of the iF design award can be recognised by its optically calm surface and solid lines. The special sintering process at 1200°C also gives it special characteristics to resist aggressive environmental influences. • Number required per m² : approx. 10.5 tiles • Minimum roof pitch: 10°, Regular roof pitch: 25° Technical data Ergoldsbacher Linea® Size ca. 29,0 x 48,5 cm Covering length ca. 37,3 - 39,3 cm Medium Covering width ca. 24,5 cm Supply required per m² (pieces) ca. 10,5 Weight per piece ca. 4,5 kg Weight per m² (DIN 1055) ca. 0,55 kN/m² Real weight ca. 46 kg/m² Pieces per pallet 192 Weight per pallet ca. 900 kg Bundle capacity (tiles) 4 Hail resistance class 4
