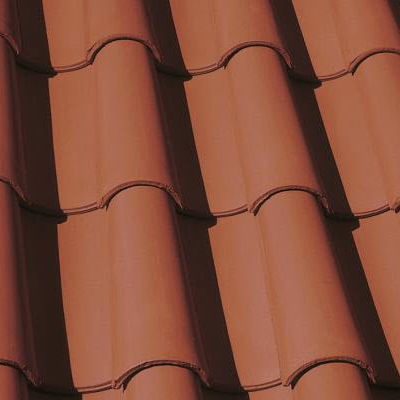

Barrel roof tile MÖNCH- UND NONNENZIEGEL

interlockingcurvedclay

Ergoldsbacher Over and Under Tile – Historically faithful and a strong expression. A Mediterranean note ideal for individualistic roof designs and wall covers (without projections) for superior single family houses. ERLUS is the largest German supplier of over and under tiles and offers six different models in the standard range. • Number required per m 2 : depends on model • Minimum roof pitch: 10°, Regular roof pitch: 40° Technical data Ergoldsbacher Mönch- und Nonnenziegel Size 11 x 41 cm (Mönch) 21 x 41 cm (Nonne) Covering length ca. 34,0 cm Medium Covering width ca. 21,5 cm Supply required per m² (pieces) ca. 13,7 (modellabhängig) Weight per piece ca. 1,8 kg (Mönch) ca. 2,8 kg (Nonne) Weight per m² (DIN 1055) ca. 0,90 kN/m² Real weight ca. 65,0 kg/m² Pieces per pallet400 (Mönch) 240 (Nonne) Weight per pallet ca. 700 kg (Mönch) ca. 730 kg (Nonne) Bundle capacity (tiles) 10 Hail resistance class n.n.b.
