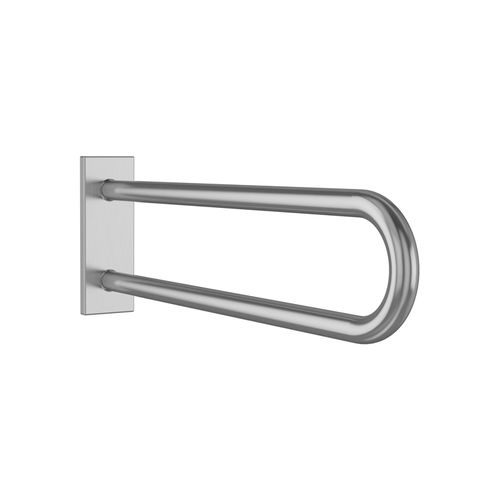

Support rail in robust, germ-reducing and easy-care stainless steel (AISI 304), satin finished.
Outer diameter of tubes 32 mm for ergonomic hold, bend radii 75 mm.
Wall mountings with 6-point mounting plate, 90 x 250 x 4 mm, and with 2K-wall sealing-disc.
Supports weight up to 125 kg.
Fastening concealed by self-locking wall cover.
TÜV-certified in accordance with DIN EN 12182,
CE-marked in accordance with 93/42 EEC.
Mounting: With six screws.
Fixing material available as accessories for different kinds of walls.
Length / Weight / Order number
500 mm / 2,3 kg /
600 mm / 2,6 kg /
700 mm / 2,9 kg /
850 mm / 3,4 kg /
