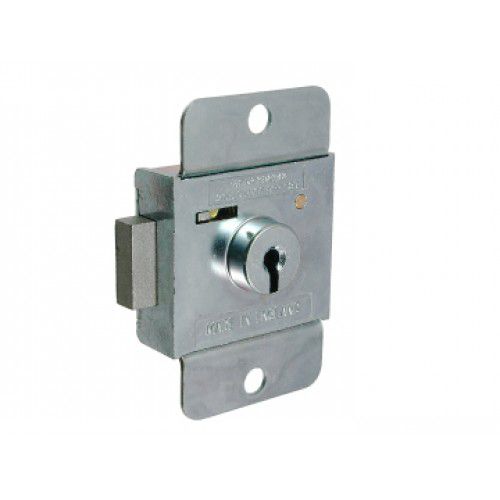

Mechanical lock 2216

for furniture1 point

A 7 lever rim lock 2216 with a dead bolt closing action available in a zinc plate finish. The fixing holes as shown on the technical drawing are standard, but can be varied to suit individual requirements. These locks are normally supplied with the key free in the locked and unlocked positions, however they can also be supplied with the key trapped in the unlocked position. Ideal for use on many applications these locks are commonly found on enclosures, wooden and metal furniture. Lock Combinations: 1,000 Mastered or 6,000 Non-mastered Standard finish: Zinc plate M Keyed system supplied to order only Locks operated by pin-type key
