Ground-mount mounting system SUN 250

stand-alonesolarfor photovoltaic panels

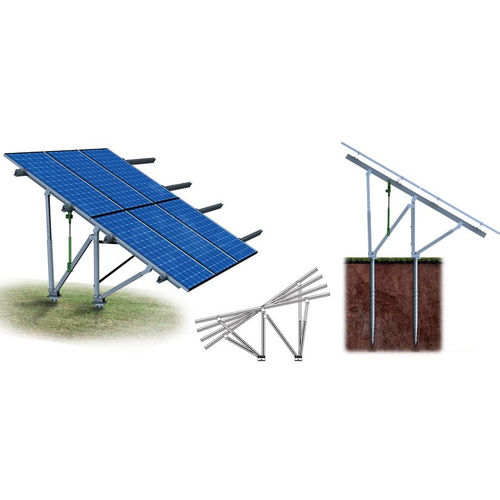

EUROPA SUN 250 series is an innovative mounting system for photovoltaic panels, suitable for installation on smooth or non-smooth terrains. It offers a selection of tilt adjustment (via removable electrical or manual mechanism) and it is made of high strength aluminium alloy 6060, which provides rigidity and high strength. The mounting system is based on earth screws. It is designed to receive two rows of panels in portrait arrange or three panels in landscape orientation and the slope can be adjusted in the range of 15o, 20o, 25o, and 30o. The vertical distance between the ground and the edge of a typical panel (990mm x 1.651mm) is 2.0m at the rear and 0.4m at the front, for an inclination of 30o. The typical distance between supports is 3.5m.
