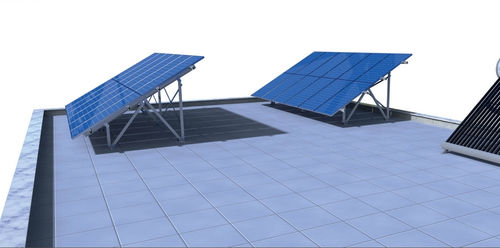

On-roof mounting system SUN 502

solarfor photovoltaic panels

EUROPA SUN 502 is a simple and quick to assemble fixed mounting system for photovoltaic panels, suitable for installation on flat roofs. It is made of high strength aluminium alloy 6060 and offers high strength and rigidity. The mounting system is based on concrete footings by chemical anchors. Alternatively, weights may be used to avoid interference with the roof. It is designed to receive two rows of panels arranged in portrait or landscape orientation and slope in the range 25o to 30o. The vertical distance between the roof and the edge of a typical panel (990mm x 1.651mm) is 2.0m at the rear side and 0.4m at the front, for inclination of 30o. The typical distance between supports is 2.55m. EUROPA SUN 502 could be modified to meet any need of photovoltaic system on flat roofs.
