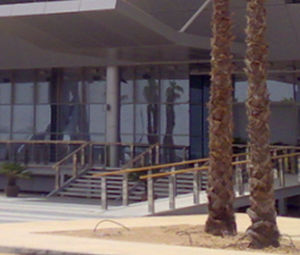

Aluminum door profile EFP 55TB
acousticsecuritythermal break

aluminum door profile
aluminum door profile
aluminum door profile
aluminum door profile
Add to favorites
Compare this product


Characteristics

Material
aluminum
Technical characteristics
acoustic, security, thermal break

Description

is a pressure equalised, fully drained, thermally broken system which consists of 55 mm or 100mm deep frames & vents. Various alternative profiles with slim side lines from 24-30-40 and 50mm are available for this system. The smallest sight line can be achieved using a 24mm wide Frame + 47mm Vent and have externally a typical minimum edge radius of 0.5mm, edge radii for even distribution of the powder coating layer. Specification summary continued: Glazing—The system is glazed from the inside or outside. Glass should conform the requirements of BS 6262 for thickness and type, in terms of wind resistance, safety and security. Drainage—The system is fully drained & pressure equalised, achieved by meeting the requirements of “Ventilated and drained glazing system” as specified in BS 6262 Frame / Vent Glazing depth is 55mm, standard glazing thickness from 4 to 40mm Thermal insulation—Standard configuration: Class 2.1 in accordance with DIN 4108 (2.1-2.8 W m2 K) or EN ISO 10077-1 – Uf Value up to 2.5 W/m2K = (EFP 65tb) The thermal transmittance ( Uf ) W/m2 K, is depending on the insulator strip, this as calculated as per EN ISO 10077-1. Comparable with class 2.3 DIN 4108-4 Table 3 Sound insulation—Depending largely upon the glass specification, generally the window framing reduces the figure by 2 db (A)
