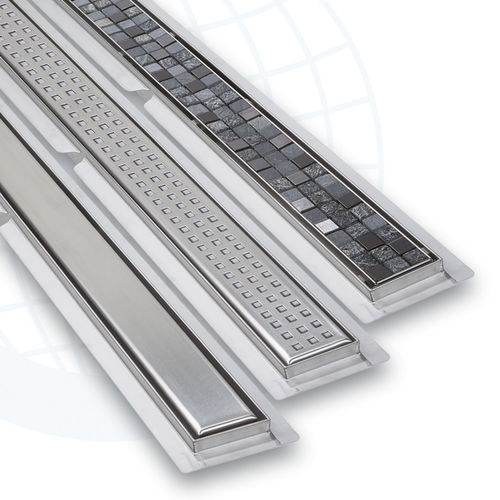

Linear drain with horizontal outlet made of AISI 304 stainless steel for floor level shower trays both for remodelling work and new works. Adjustable by means of lateral legs to various heights from 6.7 cm to 9.6 cm. The drain may be placed both in the centre of the shower tray or alongside the wall. Endowed with a removable siphon for easy, convenient cleaning. The drain is endowed with an exterior frame which allows any flooring to be used up to a maximum height of 14 mm. Available in three lengths (60, 70 and 80 cm) with three different finishes:
· R1: Square grating
· R2: Grating for ceramics with a max. height of 12 mm
· R3: Brush-finished stainless steel grating
A: Grate.
B: Waterproof sheet.
C: Removable water trap.
D: Drainage channel.
E: Adjustable legs, 67-96 mm.
F: DN40 to DN50 connection.
