swing gate automation

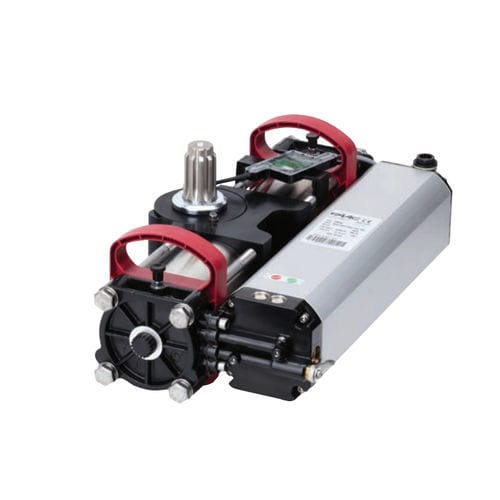

S800H 230V FAAC

Add to MyArchiExpo favorites
swing gate automation swing gate automation - S800H 230V
{{requestButtons}}

Characteristics

  • Applications:

    swing gate

Description

Technical specification
Duty
Residential & light commercial

Max Leaf Length
4m

Max Leaf Weight
800kg

Voltage
230V

Application
Residential & light commercial

Anti-Crush Features
Force limited by bypass valves
Absolute encoder optional on 230V system

Locking
Self locking up to 2m

Special Features
100deg and 180deg versions
All operators have built-in stops

Key features
Integrated absolute magnetic encoder with bus "2Easy" (non polarized two wire connection). FAAC PATENT
Thanks to the integrated positive stops, there is no need to install opening and closing mechanical stops on the ground
Service release device
Easier handling and installation thanks to the integrated handles. FAAC PATENT
