sliding gate automation

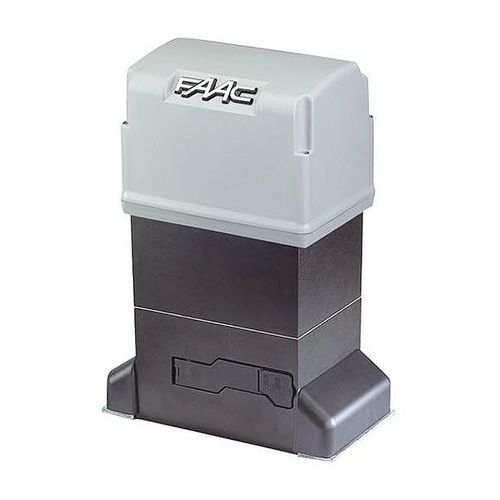

844 3-PHASE FAAC

{{requestButtons}}

Characteristics

  • Applications:

    for sliding gates

Description

Technical specification
Duty
Industrial

Power Consumption
950W

Max Gate Weight
1,600kg (Z16) / 2,200kg (Z12)

Max Speed
9.5 m/min (Z16) / 7.2 m/min (Z12)

Use frequency
70%

Special considerations
Control board requires CAT3 safety edges to be used.

Key features
Ideal for commercial and industrial applications
As the gearmotor is non reversing, no electric locks need to be installed.
Key protected lever release device
Twin-disk clutch in oil-bath (anti-crushing safety)
Inductive limit switch
