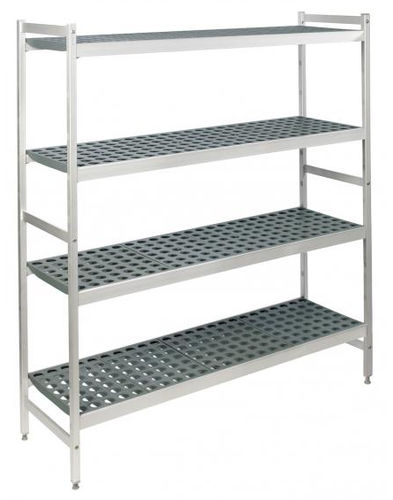

Assembly is through conical metal clamps manufactured of anodized aluminium ensuring extremely stable units. Fermostock can be installed in singular units or combinations allowing a number of configurations including « L », « U », « T », and « + » layouts.
Operating temperature : - 40°F to 140°F (- 40°C to 60°C).
Available standard sizes:
- 3 heights of uprights: 66, 71, 83 in.* (1685, 1800, 2100 mm)
- 3 depths: 14, 18, 22 in.* (360, 460, 560 mm)
- 10 lengths: 26, 31, 35, 38, 42, 47, 52, 59, 64, 68 in.*
(660, 780, 900, 960, 1080, 1200, 1320, 1500, 1620, 1740 mm)
Polymer shelf inserts are dishwasher safe (+212°F / +100°C).
Also available:
Mobile units:
- 1 height of uprights: 71 in.* (1792 mm)
- 3 depths: 14, 18, 22 in.* (360, 460, 560 mm)
- Loading per shelf level for evenly distributed load: 250 lbs
- Maximum weight is 500 lbs between 2 uprights
Dunnage racks:
- 1 height of uprights: 12 in.* (300 mm)
- 3 depths: 14, 18, 22 in.* (360, 460, 560 mm)
- Loading per shelf level for evenly distributed load: 800 lbs (except length of 52 in.*: 600 lbs)
* All dimensions in inches have been rounded
