Modular formwork TUBES
plasticfor crawl space

modular formwork
modular formwork
modular formwork
modular formwork
modular formwork
modular formwork
modular formwork
Add to favorites
Compare this product


Characteristics

Type
modular
Material
plastic
Applications
for crawl space

Description

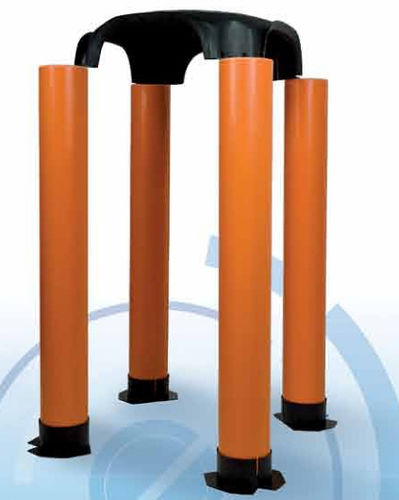

TUBES is a modular system, used for building crawl spaces, ventilated floors and cavities, in the construction or renovation of residential and industrial buildings. it is ideal for the construction of dispersion tanks or rainwater tanks for the collection and reuse of rain water for fire fighting, irrigation or for all uses that do not require the use of drinking water. The TUBES system is used when the height of the crawl space is such that monoblock formworks cannot be used or when special or variable measures are required, as in the case of inclined planes or multilevel surfaces. The TUBES systemTUBES system consists of three elements:: a square 50 x 50 cm formwork 15 cm high, equipped with a joining system of overlapping modular elements each of which connects with the next. a support foot of 3 cm, which is the base for the tube. a tube with a diameter of 125 mm. TUBES is generally installed on a lean concrete subbase of varying thickness depending on the application. After the laying of a suitable mesh and reinforcing rods for the pillars, the concrete is cast and many pillars with the same diameter are formed. Once the concrete is cured, the pillars determine the actual resistance of the floor, with the uniform distribution of loads over the entire surface. The TUBES system creates a plumbing space with an appropriate steam barrier for the floor and, when properly ventilated by pipes connected with the outside, functions as a vehicle for the disposal of Radon gas.
