The concept

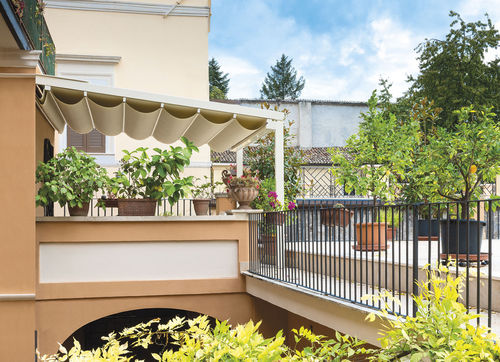

The frame, made entirely of aluminum, combined with the cover completely retractable in PVC Blackout protects the area below from sun and rain. The particular arrangement of the structure allows, in case of rain, also with a minimum slope of 15%, to gather the water in the frontal gutter to be downloaded in frontal area through the posts. The system of conjunction by means of profiles bearing cloth accompanied by specific gaskets, guarantees absolute impermeability of the cover sheet and the water drop down.
Technical informations
Extruded aluminum profiles, primary alloy UNI 6060, 70hb hardness in T6 state, thermal treatment co in the oven at 180 °.
Epoxy powder coating resin polyester, UV-resistant, with pre- treatment to phosphochromate.
Pulleys in Nylon 6 degrees loaded with glass fiber;
Stainless steel pins and drive belt polyurethane reinforced with steel.
PVC fabric Precontraint blackout, flame retardant Class 2, sealed, delivered pre-assembled on profiles cloths. The fabric underneath the roof is produced in Tempotest Light.
