Security bollard DORIC

access controlpolyurethaneremovable

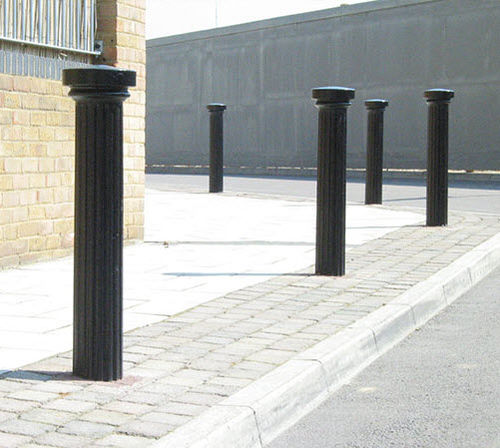

Based on a classical Greek column, the Doric polyurethane bollard offers excellent resistance to the weather and many other types of abrasion. It is an ideal material for sites which present harsh environmental conditions such as heritage and coastal locations. The Doric bollard features decorative fluted sides and a low rounded top and is finished in a two pack polyurethane gloss coating to any RAL or BS 4800 colour reference. MATERIALS & FINISHES: Polyurethane elastomer (PU) - two pack gloss paint finish OPTIONS: Removable - standard or F1 socket Eyebolts - for chain link Reflective tape - refer to accessories for colour With sign INSTALLATION: Root fixed Foundation depth is usually the same as the root depth of the bollard Minimum recommended foundation diameter is the root diameter plus 200mm Concrete mix to 25 newtons Removable Foundation depth 320mm Minimum recommended foundation 450mm sq Dig an additional drainage hole 80mm (d) x 150mm (sq) and fill with pea shingle (directly below socket) Concrete mix to 25 newtons
