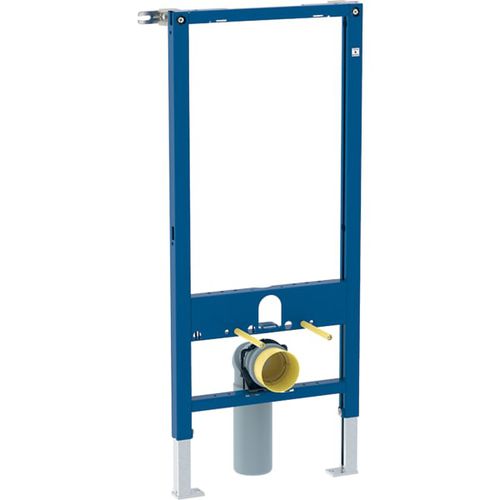

Wall-mounted toilet installation unit 111.321.00.1

Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame For drywall construction For installation in part- or room-height prewall installations For installation in room-height installation walls For installation in part- or room-height Geberit Duofix system walls For wall-hung WCs with connection dimensions in accordance with EN 33:2011 For wall-hung WCs with projection up to 62 cm For floor constructions 0–20 cm Self-supporting frame, powder-coated Frame with ø 9 mm drilling holes for fastening in wood frame construction Frame prepared for support brackets for WC ceramic appliances with small contact surfaces Galvanized feet Feet adjustable 0–20 cm Non-slip leg supports Rotatable foot plates Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails Connection bend can be mounted without tools at different depths, adjustable range 45 mm Rotatable connection bend for connection piece for horizontal outlet to the rear Fastening for connection bend, sound-absorbing Set of wall anchors for single and system installation Connection set for WC, ø 90 mm Connection bend 90° made of PVC, ø 90 / 100 mm Protection plug 2 threaded rods M12 Fastening material
