smoking cabin smoking cabin - CARLETON 50™

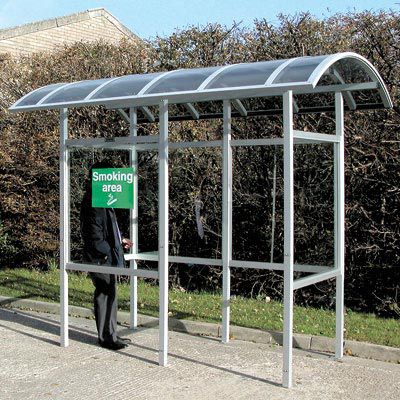

The Carleton 50 outdoor smoking shelter is a low maintenance and cost–effective standing smokers shelter, with options of curved, pitched or flat roofs or as a cantilever-style shelter. Fully complies with UK smoke–free legislation.

Carleton 50 Smoking Shelters are available in a wide range of sizes, colours and configurations.

Carleton 50 Smoking Shelters can be supplied with curved, pitched or flat roofs, or as a cantilever-style shelter.

The shelters offer full compliance with UK Smoke Free legislation. The law requires all smoking shelters have a minimum of 50% open wall area. Our Carleton 50 Smoking Shelters feature reduced-height glazing panels to achieve compliance.

To help provide greater protection from the weather, each roof style has a perimeter canopy. Optional signage is available to clearly identify designated smoking areas.

Glasdon Carleton 50 shelters are specified by number of bays. Standard models are available in layouts from 2 bays x 1 bay (nominal wall dimensions 2180mm x 1115mm) to 3 bays x 2 bays (nominal dimensions 3245mm x 2180mm). 2-bay long shelters have the choice of left or right hand entry, while 3-bay designs add the option of middle entry or both left and right hand entrances.

The Carleton range of shelters is manufactured from durable aluminium and supplied with a natural anodised finish as standard. Shelters can be specified with coloured framework at an additional cost with an Armortec® Coating for durability and weather resistance.

Glasdon manufacture and supply a wide range of cigarette disposal units. For more information, please visit our dedicated Smoking Control website.
