floor-standing electrical enclosure / industrial / empty / with door

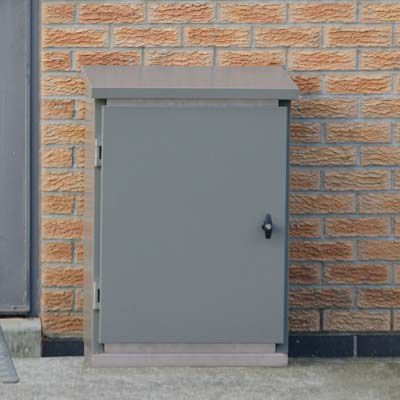

CITADEL™ 639 INDUSTRIAL CABINET Glasdon Group Limited

{{requestButtons}}

Characteristics

  • Installation:

    floor-standing

  • Sector:

    industrial

  • Type:

    empty

  • Other characteristics:

    with door

  • Width:

    600 mm

  • Depth:

    300 mm

  • Height:

    900 mm

Description

The Citadel™ 639 steel cabinet is available as an IP56 rated enclosure or as a ventilated model, for the secure housing of electrical equipment, metering and monitoring devices and network technologies, across a variety of industrial applications.

Citadel enclosure cabinets are available in a five different industry standard sizes.

Design Features

Available as an IP56 Rated model or Ventilated model.
T-Handle Locking System.
Plastisol External Finish: provides resistance against abrasions and vandalism with minimal maintenance required.
Double Skinned Insulated Walls and Roof: provide vandal and weather resistance.
Reinforced Double Skinned Insulated Door: provides optimum protection.
Forward Sloping Roof: prevents liquids and debris from collecting on top.
Flush Back: allows for the enclosure to be sited against walls without dirt traps if required.
2mm Stainless Steel (Grade 304) Chassis minimises corrosion from ground point and provides a strong, robust base with integrated fixing points to secure it into the ground.
Secure Stainless Steel Hinges: for weather and vandal resistance ensuring long lasting durability.
3 Point Locking System: provides a tightly sealed enclosure.
Rubber Door Compression Seals: helps minimise water and dust ingress.
Concealed Stainless Steel Fixings: provide vandal and corrosion resistance.

Colors

Merlin Grey
Any TATA Steel Colorcoat LG colours are available on request subject to a minimum order quantity of 25 units.

Materials

Walls/Roof/Door: Plastisol - Plastic Coated Steel
Chassis: Stainless Steel Grade 304
Door Hinges: Stainless Steel


Dimensions

Width: 600mm
Depth: 300mm
Height: 900mm
