Air flow regulator RDR

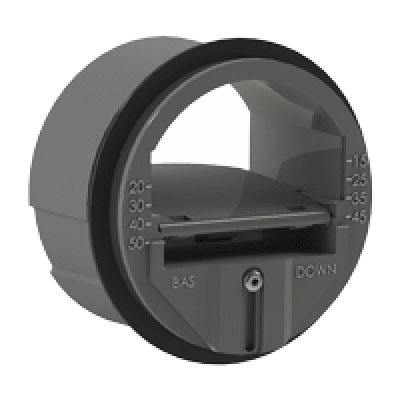

Applicable to both supply and exhaust Available in diameters from 80 to 250 mm Flow rate range: 15 - 700 m³/h Pressure range: 50 - 250 Pa Low pressure loss Low sound level The flow regulator RDR is an element placed inside the duct in order to obtain a constant flow within a pressure range from 50 to 250 Pascals. It is used in air conditionning or ventilation systems either in extraction or blowing mode. • Self adjusting on the pressure range 50 to 250 Pa • Easy adjustment • The requested air flow is fixed by a screwdriver atorx n°10 •M Wade in plastic material (classified M1) and in galvanized steel for sleeves in 0 160 to 0 250 mm • Use with a maximum temperature of 60°C
