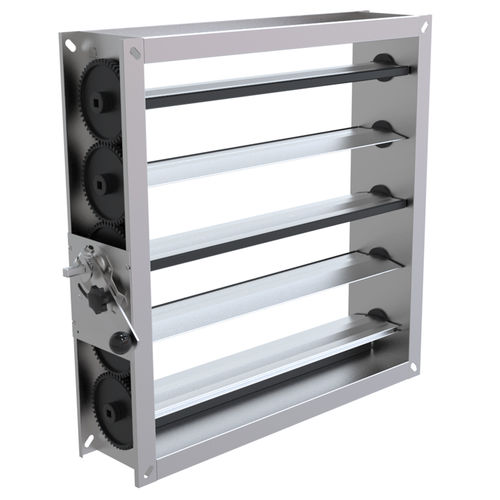

Opposed blade damper with galvanised steel housing and extruded aluminium counter rotating blades. The aluminium blades are equipped with an air tight seal and maintenance free bearings. Housing meets Class C following EN1751, blades meet Class 2/4 following EN1751. Can be equipped with actuator or manual lever.
Class C housing following EN1751
Available height in steps of 50mm, width in steps of 50mm.
Airflow type Supply and extraction
Shape Rectangular
Air flow control Manual, Actuator
Available steps in length 50 mm
Length 130 mm
Min. height 150 mm
Max. height 1200 mm
Min. width 150 mm
Max. width 1200 mm (2400 mm double, only KA103)
Available steps in height 50 mm
Standard material Galvanised steel (275 g/m²)
Blades Aluminium extruded blades with airtight seal
Certification EN1751 Class C, EN1751 Class 2
Min. service temperature -20°C
Max. service temperature 80°C
