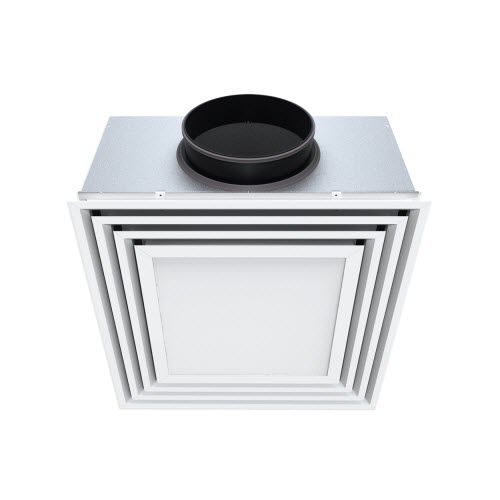

The TS600/700 slot diffusers is suitable for the supply and exhaust of both heated and chilled air in offices, conference halls and shops. The specially designed baffles ensure a fixed horizontal diffusion pattern on all four sides without internal turbulece. The frame of the diffuser can be adjusted to the ceilling.
Combined aluminium-steel ceiling diffuser for pulsed air delivery, standard painted white (RAL9010).
Available up to 4 slots on the four sides of the diffuser, fixed horizontal diffusion pattern.
TS600: fixed core
TS700: hinged core and push-pull lock.
Ceiling
Suspended ceiling
4 way throw
Rectangular execution
• The diffuser is provided with a
plenum, with optional insulation,
and can be fitted with a volume
control in the intake
• Combined aluminium and steel
ceiling diffuser, painted white
(RAL 9010)
• TS600: fixed core
TS700: hinged core and pushpull lock
• galvanised steel sheet plenum
Combined aluminium-steel supply
ceiling grille. The supply section consists of fixed slot diffusers.
The frame of this ceiling grille can be
adapted to the ceiling system.
The unit is delivered with a fixed plenum.
The grille is painted white (RAL 9010).
