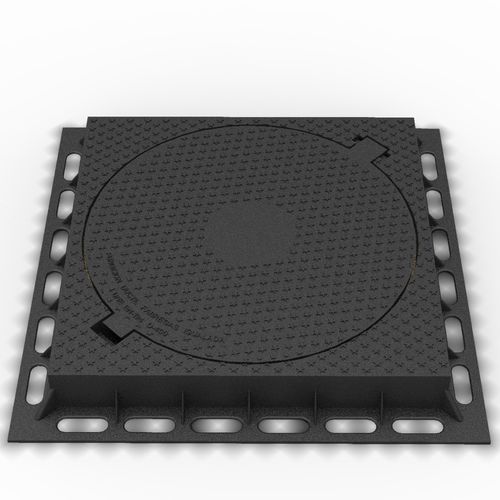

cast iron manhole cover / square / with built-in lid
R-3 Grup Fabregas

{{requestButtons}}

Characteristics

  • Material:

    cast iron

  • Shape:

    square

  • Other characteristics:

    with built-in lid

Description

Manhole Cover ø650 and apparent frame 850×850 mm. In ductile casting for 40 TM of breaking load. With joint of polyethylene and click locking. It conforms the standard UNE EN-124. class D-400.

Technical data sheet
Class
Norm
EN-124
Outside width
845 mm
Outside length
845 mm
Height
101.2 mm
Clearance dimension
613 mm
