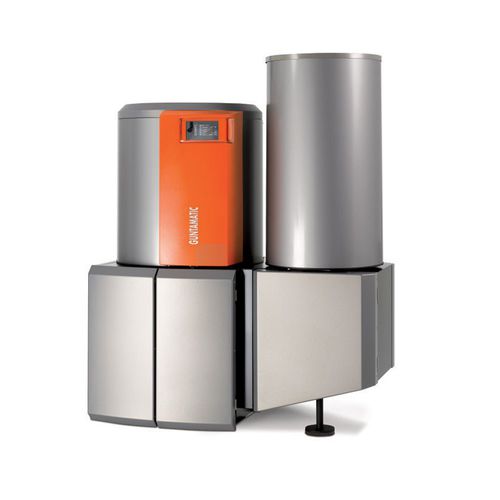

Pellet boiler BIOCOM 30
for heating onlyresidentialindoor

pellet boiler
pellet boiler
pellet boiler
pellet boiler
pellet boiler
pellet boiler
pellet boiler
Add to favorites
Compare this product


Characteristics

Power source
pellet
Type
for heating only
Sector
residential
Interior/exterior use
indoor
Other characteristics
low-temperature
Certifications
Class A+
Power

Min.: 10.4 kW

Max.: 49 kW

Height

1,670 mm
(66 in)

Weight

550 kg, 553 kg, 585 kg
(1,212.5 lb, 1,219.2 lb, 1,289.7 lb)

Water heater capacity

128 l, 147 l
(33.8 gal, 38.8 gal)

Description

Biocom heating systems with industrial step grate technology deliver maximum economy with minimum emissions. These boilers can operate with wood pellets of varying quality. The wood pellets are gasified on the industrial step grate, where primary air is supplied at an ember bed temperature of around 800 °C. The amount of combustion air and fuel charge is regulated by means of a lambda probe, so that the system achieves a level of efficiency of up to 94 %. With the aid of secondary air, the generated combustion gases are cleanly and efficiently converted into energy in a large rotating combustion zone. Conventional pellet heating systems require frequent cleaning. The Biocom system, on the other hand, cleans the combustion chamber, heat exchanger and grate area automatically. The large ash box reduces the remaining effort to a minimum. Only the general cleaning needs to be carried out manually. Guntamatic storage systems, with vacuum delivery systems employing dosing screw conveyors, are highly durable and reliable. When the fuel is completely used up, there is no need for the annual storage room cleaning. Depending on requirements, a high grade steel/mesh hopper or sloping floor storage room with discharge screw conveyor are available. Highly advanced control technology enables you to regulate your interior climate, the system and storage room functions automatically. Individual adjustments can be made easily via the ergonomic touchscreen controller, a room control station (if installed) or an app on a smartphone. Biocom systems are particularly reliable in operation and meet the highest quality requirements.
