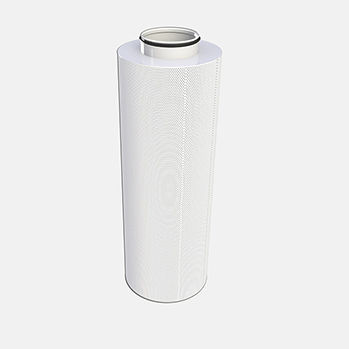

Floor displacement air diffuser ZCI
circular

floor displacement air diffuser
floor displacement air diffuser
Add to favorites
Compare this product


Characteristics

Installation
floor
Shape
circular

Description

This circular displacement unit is an excellent choice for middle space positioning. Capable of alarge supply airflow range Uniform supply air distribution is achieved through small perforations, providing optimal conditions in the immediate proximity of the diffuser. Low velocity air is diffused at the floor level, making the unit suitable for positioning in the centre of a space. The air flow is patterned for 360 degrees of diffusion, enabling large airflow rates with low residual velocities in the occupied zone. The detachable front plate enables cleaning of the unit and ductwork Circular duct connection with an integrated rubber gasket on the top/bottom. Product models and Accessories Model with lipstick, flat or round cap top cover Model with stainless steel (AISI 316) design Model with thick front panel (1.5 mm) Air flow equalization plate when ducted from bottom Duct cover Installation base (standard or high store model) The Halton Zen Circle displacement ventilation supply unit is made of galvanised steel, polyester-epoxy-painted with a white (RAL 9010) colour. The unit has a robust maintenance free, non-clogging design. The unit is comprised of a detachable, perforated front panel, removable service plate, a plastic internal fixed flow equalisation element, and casing. The unit has a circular duct connection at the top or bottom depending on the location of the unit. Mounting brackets are included in the delivery, srcews not. Options The unit can be equipped with a duct cover and/or installation base, where required. Additionally, different colours and surface patterns are available on separate request.
