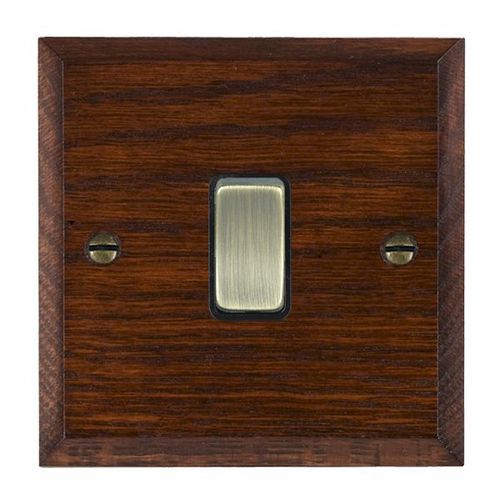

Quality Accessories on Natural Wood Plinth Plates
An attractive and unique range Woods is available in four natural wood finishes with a choice of Ovolo or Chamfered edge. The plates of the Woods range are manufactured from timber sourced from sustainable woodland, as far aas possible. They are treated to meet BS EN standards and carry all of Hamilton’s standard electrical inserts. Ideal for a building with character.
• Four natural wood finishes
• Choice of Ovolo or Chamfered edge
• Timber sourced from suppliers who
carry the FSC logo
• Plates treated to meet BS EN
standards
• Euro Fix also available (see separate
EuroFix section for inserts)
Primary Range Woods
Insert Type 1 gang 10AX 2 Way Rocker
Insert Colour Antique Brass/Black
EAN13 Barcode 5017504938215
Commodity Code 85363010
Luckins TSI 391588493
Dimensions(Nominal) Single: Height = 88.0mm Width = 88.0mm Depth = 13.5mm
Switched Poles Single
Current Rating 10AX
Voltage 220/250V AC
Maximum Load 10 Amp inductive
Mains Frequency 50Hz
IP Rating IP2XD
Contact Gap Minimum 3mm
Terminal Capacity 1 5x1mm²
Terminal Capacity 2 4x1.5mm²
Terminal Capacity 3 1x2.5mm²
Terminal Capacity 4 1x4mm² Multi-strand
Terminal Capacity 5 1x6mm²
Earth Terminal Capacity 1 5x1mm²
Earth Terminal Capacity 2 4x1.5mm²
Earth Terminal Capacity 3 3x2.5mm²
Earth Terminal Capacity 4 1x4mm² Multi-strand
Earth Terminal Capacity 5 1x6mm²
Product Class 1 Must be earthed
Ambient Operating Temperature -5° to +40°C
Recommended Location Internal Use Only
Maximum Installation Altitude 2000m
Standard/Approval BS EN 60669-1
