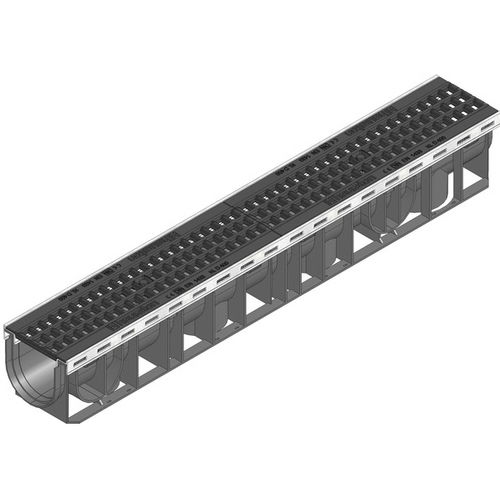

Drainage channel with grating RECYFIX PLUS X
polypropyleneironfor public spaces

drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
Add to favorites
Compare this product


Characteristics

Configuration
with grating
Material
polypropylene
*grid material
iron
Applications
for public spaces
Level of traffic
for pedestrian area, for heavy traffic
Other characteristics
rainwater
Length

500 mm, 1,000 mm
(20 in, 39 in)

Width

100 mm, 150 mm, 200 mm, 300 mm
(4 in, 6 in, 8 in, 12 in)

Depth

138 mm, 189 mm, 196 mm, 239 mm, 294 mm
(5.43 in, 7.44 in, 7.72 in, 9.41 in, 11.57 in)

Description

The PP channel with reinforced galvanised steel angle housings combines efficiency and durability. Our channel solution for maximum stability Benefits of the RECYFIX PLUS X RECYFIX PLUS X channels with galvanised steel angle housings and a recycled PP channel body can withstand loads up to class D 400. The PP channels of the RECYFIX PLUS X range are light, stable and impact-resistant and are available in internal widths of 100 to 300 mm. In addition, the attractive design makes it suitable for public and commercial areas with daily vehicle and pedestrian traffic. Structure protected by reinforced galvanised steel angle housings Robust and unbreakable material; channel body made of polypropylene Lateral perforations for angle and T connections Excellent resistance to frost, de-icing salts and UV radiation Very light and easy to handle material Durable material The RECYFIX material is made from recycled polypropylene and carries the German environmental label “Blue Angel”. This saves raw materials for the production of drainage channels. RECYFIX is PVC-free and 100% recyclable.
