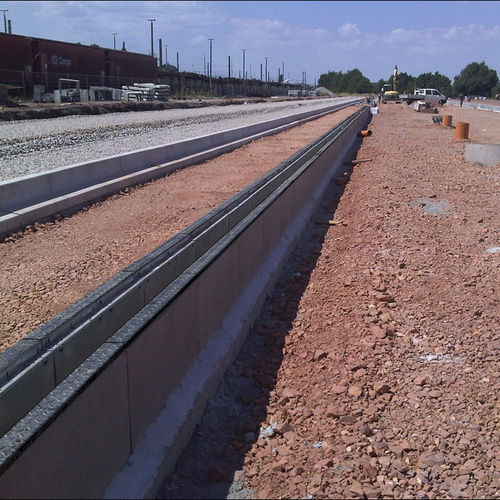

Drainage channel with grating FASERFIX BIG SLG

fiber-reinforced concreteironfor public spaces

Linear drainage with concrete stretcher protection for maximum wear resistance. Our solution – your benefits with FASERFIX BIG SLG Drainage channels for heavy-duty areas must withstand strong dynamic stresses and extreme loads. The properties of the solid FASERFIX BIG SLG channels made of fibre-reinforced concrete make them particularly suitable for the drainage of heavy traffic areas with loads up to class F 900. Concrete stretcher protection and 1 m long edge frame made of durable, KTL-coated ductile iron ensure high durability and safety Gratings securely held in the edge frame due to 40 mm inlay depth Integrated concrete stretcher saves formwork work during installation, the channels can be used immediately after installation High safety due to eightfold bolted grating and eightfold thrust resistance Safety joint for easy sealing (The official material testing institute of the University of Karlsruhe has tested the channel body parts according to the GBT Güterichtlinie für Betonpflasterplatten und Tankstellen – “Quality Guideline for Concrete Paving Slabs and Petrol Stations” and according to DIN 1045). High-quality material of building material class A1 according to
