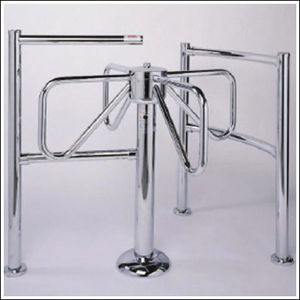

Tripod turnstile LC-100

high-trafficfor public buildings

The LC-100 is the perfect waist high turnstile for a variety of applications, ranging from athletic facilities, cafeterias, and schools, to amusement parks, stadiums, and office buildings. Its elegant yet rugged design has been built to withstand the abuse of a mass transit system while maintaining a price that is affordable to businesses at all levels. Specifications: Appearance and Construction The LC-100 turnstile body has been designed with sleek, modern looks to fit todays world. The main body is constructed from 10 gauge carbon steel with a ¼" thick base plate. Both are protected with a tough industrial-grade black powder coat finish (custom colors or Satin-stainless available). The top cover is made of type 304-brushed stainless steel and has space to mount special card readers, indicator lights, and/or other add-ons. Durable and reliable, with an easy to service mechanism The LC-100 Turnstile uses Hayward ’s heavy-duty mechanism, which was designed and built to withstand the abuse of a modern day, high-traffic subway station. The components are fabricated both from hot rolled carbon steel and stainless steel. All steel parts are coated with black oxide and oil for protection. All shafts and pivot points are stainless steel and rotate about bronze or ball bearings. The turnstile mechanism is field upgradeable to add a variety of options.
