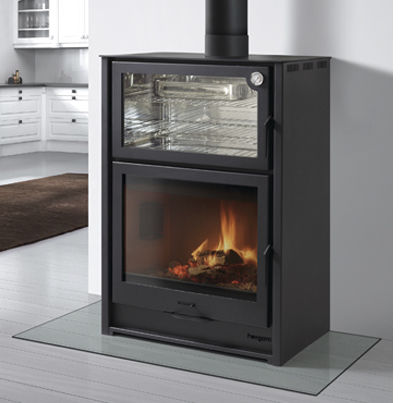

Wood-burning oven ARCEconvectionfree-standingsingle
Add to favorites
Compare this product
Characteristics
- Power source
- wood-burning
- Type
- convection
- Installation
- free-standing
- Number of ovens / chambers
- single
- Color
- black
- Other characteristics
- with grill
- Depth
369 mm
(14.5 in)- Width
520 mm
(20.5 in)- Height
275 mm
(10.8 in)- Weight
150 kg
(330.7 lb)
Description
MAIN FEATURES
NOMINAL HEAT OUTPUT
12 kW
HEATING TYPE
Radiant
CATEGORIAS Wood-fired Ovens
COLLECTION Serie Classic
OTHER FEATURES
FUEL - Wood
MATERIAL - Steel
FIREBOX MATERIAL - Refractory / vermiculite
OVEN MATERIAL - Stainless steel
PRIMARY AIR CONTROL - Yes
SECONDARY AIR CONTROL - Yes
REMOVABLE GRILL RAILS - Yes
REMOVABLE GRILLS - Yes
ASH PAN - Yes
THERMOMETER - Yes
DRAFT VALVE - No
CHIMNEY ACCESS - No
PAINT FINISH - Black
TECHNICAL DATA
EC CERTIFICATION - EZKA/11/037-10
NORM - EN 13240 / BlmSchV
NOMINAL HEAT OUTPUT (KW) - 12
EFFICIENCY (%) - 80,1%
OVEN DIMENSIONS (W X H X D) (MM.) - 520 x 275 x 369
CO EMISSIONS (13% O2 VOL. %) - 0,09%
MAXIMUM LOG LENGTH (MM) - 500
WEIGHT (KG.) - 150
FLUE EXIT - Top
Ø FLUE EXIT (MM) - 150
MINIMUM DRAFT (PA) - 12
AVERAGE SMOKE TEMPERATURE - 252
