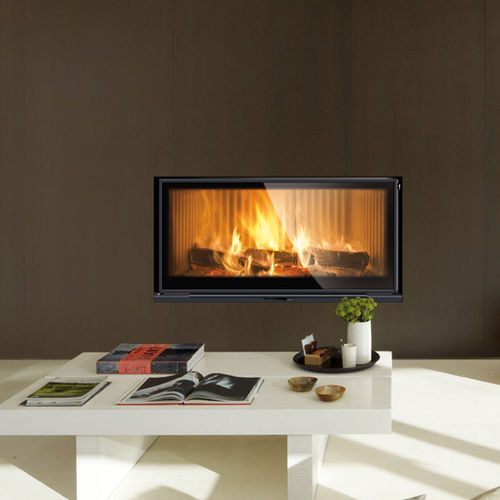

Wood-burning fireplace STILKAMIN XL

contemporaryclosed hearthrectangular

MAIN FEATURES NOMINAL HEAT OUTPUT 22 kW HEATING TYPE Radiant / Natural convection CATEGORIAS Wood fireplaces COLLECTION DivaMii OTHER FEATURES MATERIAL - Steel FIREBOX MATERIAL - Refractory / cast iron DOOR OPENING - Sliding / Swing PRIMARY AIR CONTROL - Yes SECONDARY AIR CONTROL - Yes COMBUSTION REMOTE CONTROL - No EXTERNAL AIR INLET - No ASH PAN - Yes CONVECTION JACKET - Yes CHANNELED AIR OUTLETS - 4 BLOWERS - Optional BLOWER SPEED CONTROL - Yes BLOWER REMOTE CONTROL - Yes ADJUSTABLE LEGS - Yes DRAFT VALVE - No SAFETY THERMOSTAT 50º - Yes PAINT FINISH - Black TECHNICAL DATA EC CERTIFICATION - EZKA/11/037-1 NORM - EN 13229 / BImSchV NOMINAL HEAT OUTPUT (KW) - 22 EFFICIENCY (%) - 75,1% CO EMISSIONS (13% O2 VOL. %) - 0,09% MAXIMUM LOG LENGTH (MM) - 750 WEIGHT (KG.) - 308 FLUE EXIT - Top Ø FLUE EXIT (MM) - 250 Ø AIR CHANNELING EXIT (MM) - 120 MINIMUM DRAFT (PA) - 12 AVERAGE SMOKE TEMPERATURE - 348
