One distinguishing feature of the FERRARA family of luminaires is its square housing made of frosted polymethyl methacrylate, framed by aluminium plates at the top and bottom. The soft light with low glare guarantees pleasant basic illumination. The combination with the FERRARA wall mounted luminaire delivers a consistent design for various lighting situations indoors and out.

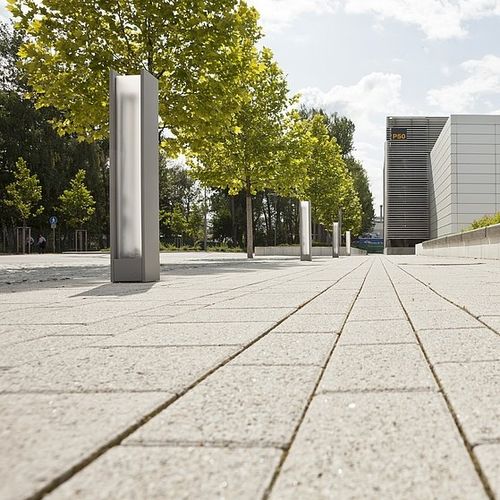

The FERRARA bollard is available in three different heights – and is optimally equipped to meet the widest array of requirements.
Square luminaire body made of aluminium. Luminaire enclosure made of PMMA, satin-finished. Rectangular bollard made of aluminium with flange plate. Protection rating I.
Illuminating bollard FERRARA 900
Housing made of aluminium
Cover of polyacrylic glass (PMMA) with frosted surface
Elec. equip.: 1xE27 socket for LED lamps (max. 250V)
Without lamp (LED Classic E27)
Ingress protection IP54, protection rating I
Total height 900 mm
With flange plate 210 x 210 x 12 mm
Connection: 3 x 2,5 mm² terminal in the base of the bollard
Colour: DB 703 or all RAL- (classic- single shades),
Hess-DB and Hess-Glimmer-colours.
RAL pearl-mica-metallic-shades on request.
Safety class
I
ULOR
70%
IK-Value
IK03
Height [mm]
900
Dimensions [mm]
150 x 150
Area exposed to wind
0,135 m²
