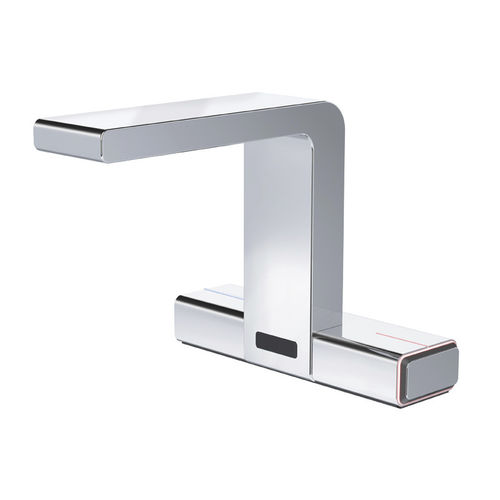

Touchless, electronically controlled lavatory faucet:
· Modular single-piece design with small external mixer unit on angle valve
· Housing made of brass, chromed
· Reliable solenoid valve ROBUST (minimal level of water pressure surge)
· Cold water supply connection with flexible high-pressure hose (cold water + faucet, mixer directly to angle valve)
· Adjustable temperature
· Comfort water-saving by sensitive raindrop-aerator
· Light use through mature LED technology
· Illumination of the water jet in white
· Electronical Touch function - easy change of the temperature by touching the button
· Temperature indication through lighted display bar (red, white, blue)
· Changes by touching the button
· Welcome-function (remote detection), light elements flashes white
· Infrared sensors with automatic setting feature, microprocessor
· Follow-up time and sensor sensitivity adjustable
· Installation similar to conventional single-lever faucet
Operating pressure: 0,3-10 bar
Flow rate: Approx. 2 l/min / 0,5 gpm 2-row jet piece (3 bar) (delivery status)
Approx. 4 l/min / 0,5 gpm 3-row jet piece (3 bar)
Max. water temperature: 80 °C
Aerator: Raindrop-aerator
Flexible hoses: 350 mm
Angle valve connection: G 3/8
Built-in filters: 0,5 mm mesh size
Sensor-sensivity: Automatic self-adapting sensor technology
Follow-up time: 2 sec. pre-set (1-7 sec. adjustable)
Continuous water flow: 2 min. pre-set (1-7 min. adjustable)
Temporary-off: 2 min. (1-7 min. adjustable)
Engineering standards: DIN EN 200;CE
