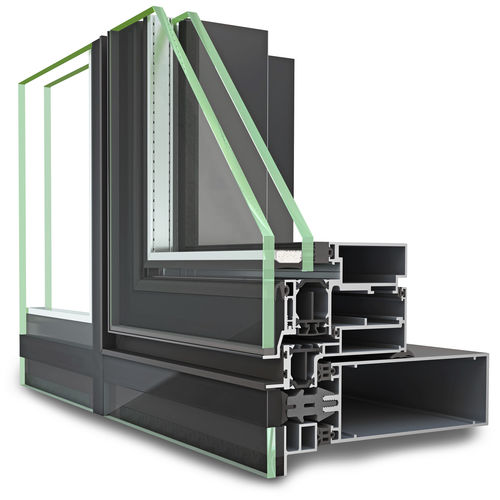

The HUECK Trigon FS 040/050/060 and HUECK Trigon Unit L façade systems can be expanded to include opening elements using the HUECK Lambda 110 window system. A unique feature is that the HUECK Lambda 110 can also be integrated into SG façades. By using this window system, parallel opening windows (PA) and projecting top-hung windows (SK) can be created with an all-around filigree accentuation of the sash or with a restrained structural glazing (SG) appearance. This enables the incorporation of functional opening elements into the façade construction to be deliberately emphasized or discreetly integrated.
Product and processing advantages
•Insert elements as top-hung projecting out or parallel opening window
•Three-chamber profiles, factory insulation compound
•Sash weight of max. 200 kg.
•Glass thicknesses of up to 44 mm can be installed
•Narrow views of the window and sash frame combination of 70 mm
•Construction depth with structural glazing design: 109 mm
•Installation depth for version with glazing bead: 114 mm
•Three levels of density
•Main weather seal as a vulcanized frame, optionally for use in Trigon FS façades with cover strips or in Trigon FS SG façades
•Circumferentially inserted centre seal gasket and circumferentially inserted inner rebate gasket for simple processing and optimum sealing
System data
•Thermal transmission coefficient (EN 10077-2): Uf = 3.8 - 4.1 W/m²K
•Air permeability (EN 12207): class 4
•Water tightness (EN 12208): E 1200
•Wind-load resistance (EN 12210): class C5
•Burglar resistance (EN 1627 et seq.): up to class RC3
