Calculation software REVIT PRECAST

computer-aided engineeringfor concrete structures3D

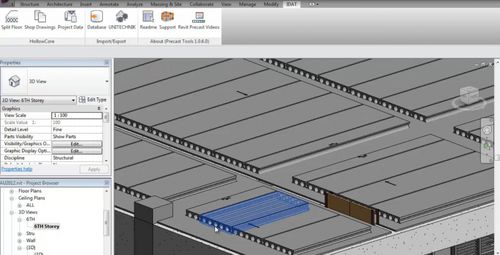

This program allows a parametrized estimation of precast concrete projects for example for the generation of quotations. Calculations for precast Walls, Slabs, Columns, Beams or special parts like balconies or stairs are supported. The basis for all calculations is a Revit building model. The user parametrizes the program to his individual calculation method individually. For this a user defined and no restricted number of parameters and factors can be defined generally or panel addicted and integrated into the calculation process (for example reinforcement grade, transport or design charges etc.). For the Revit model itself, the user can choose the whole model or only parts of it (levels, families, etc.) to be considered for the calculation process. For the selected Revit objects the user defines the type of precast part (for example for wall families if it should be a Solid Wall, Sandwich Wall, Double Wall etc.). For other family types like slabs the same action according to this. After the calculation is started the program detects all amounts and quantities from the Revit model and further some other specific data. For example, the program performs a virtual segmentation of walls and slabs to determine the expected number of panels and also the number of panel related components like lifting anchors or part connectors. For Columns and Beams, the program detects automatically the number and position of connections like for example brackets. RevitPrecast Estimation is now collecting all this information and calculates the quantities and prices along the predefined rules.
