Retaining wall calculation software WINWAND

for concrete structures

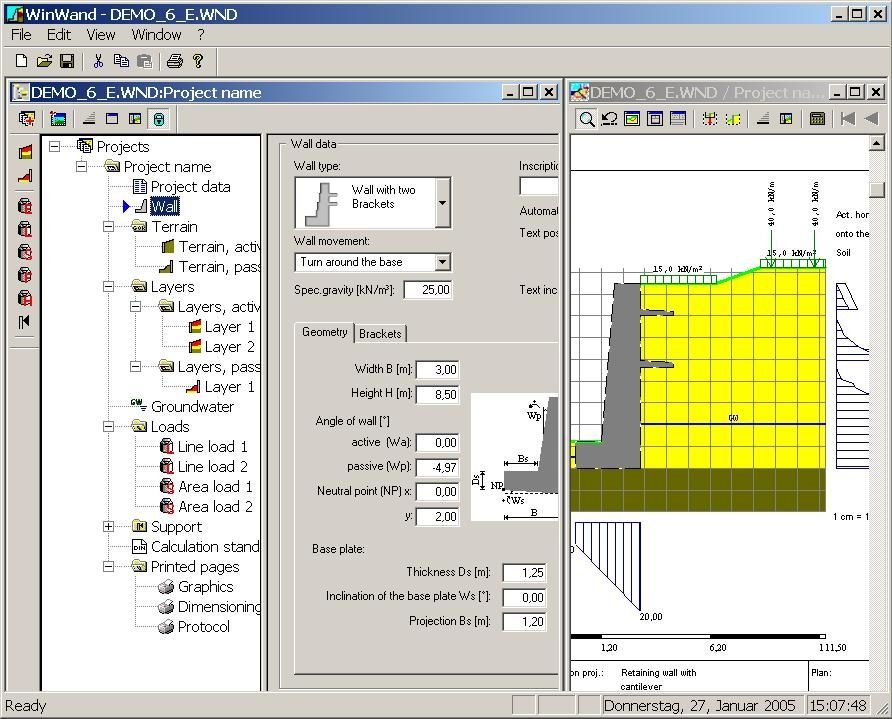

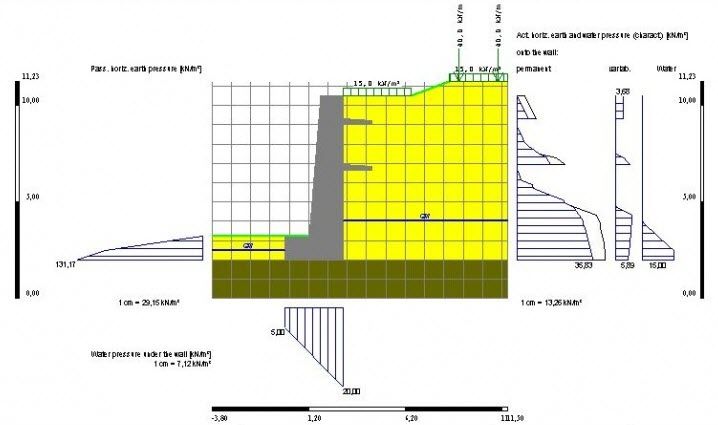

The program WinWand is used for the calculation of active, passive earth and static pressure for rigid retaining walls and abutment with consideration of not flowing or flowing groundwater. Are determined in each case the decisive distribution about the wall height and that one from that resultant. The contact pressure and the water pressure under the wall are charged additional and determined the Slip- and overturn-safety of the wall as well as the safety for ultimate state for passive earth pressure. The surface of WinWand is built up just the same as the WINDOWS-Explorer. The input tree guarantees an optimal view of all inputs. If one opens the output window before the data input, one can see the effects of the inputs directly in the output window. As many as desired windows can be opened and arranged both under each other and next to each other. WinWand runs under the operating systems WINDOWS 2000, XP, Vista and WINDOWS 7.
