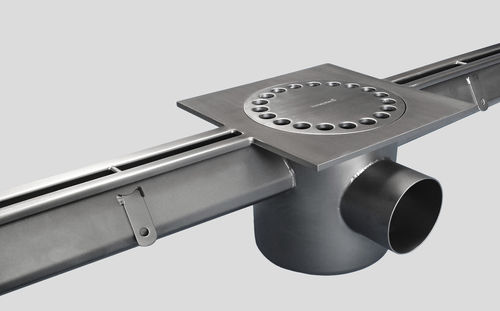

Drainage channel with central slot 1070

stainless steelfloor

Entirely made of stainless steel AISI 304 (or 316 upon request), with a thickness of 2mm, they are ideal especially for residential buildings, production areas, wineries, dairies, slaughterhouses, fish mongers etc… The body section of the drainage channel is increased to 100mm to ensure that, even in occasions of extraordinary load of water, the conduit is able to provide an effective and safe response. The standard center slot of the channel is 20mm, with a 60mm edge at sight and a channel drainage body of 100mm technically designed to be fully inspected at sight (art. Inoxsystem® MC2 see catalogue at page 8, DWG. 2010). The channel is equipped with a floor drain (also called gully or sump) with a square top at sight of 300x300 mm, plate thickness of 8mm (planned for an high-traffic use, with his appropriate thickness avoids accidental plate bending), with an overall height of 220mm and a 110mm Ø outlet pipe with filter basket for waste capturing, considered as insect and rat-proof. The floor drain can have a vertical outlet (Art. Inoxsystem® "CV110308") or an horizontal outlet (Art. Inoxsystem® " CLR110308") which can be positioned at the center, at the head or in a point of the channel defined by the customer. Upon request you can have the edges of the channel pre-filled with our special self-attaching rigid resin (Art. Inoxsystem ® "BCR") in order to get the maximum traffic duty and robustness of the product and, thanks to the groups of connection flanges every 3 or 6 meters, depending on the transport needs (Art. Inoxsystem ® "FLC") can be produced custom with various lengths.
