aluminum conservatory
LUCIOLE® ÉPINE INSTALLUX

{{requestButtons}}

Characteristics

  • Material:

    aluminum

Description

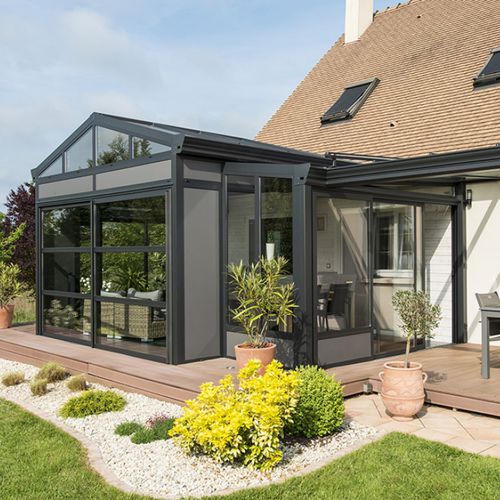

nstallux Aluminium's traditional Luciole® T-rafter conservatory is composed of a T-rafter roof and a structure integrating the thermal-comfort opening frames of the 50TH and 26TH range.

ROOF


Installux Aluminium’s Luciole® T-rafter roof is composed of thermal-break rafters in the shape of an inverted T, intermediate and ridge rafters. The infill elements with a maximum thickness of 55 mm are held by gaskets, glazing beads, or cover caps.
The rafters may be reinforced in case of projects of large dimensions or located in regions with heavy snow or wind load.
The gutter is part of the pole plate and is available in two versions, with or without roller shutter box.

Gutter
The gutter of the Luciole® T-rafter roof system is part of the pole plate. It accepts a high water level and has a high inertia allowing large-size installations.
The look and the finishings of the gutter have been designed with the greatest care. Three models of traditional or modern raisers give it the finishing touch.

Gutter for Roller Shutter
The gutter/pole plate of the Luciole® T-rafter roof system is also available in a version to incorporate a roller shutter box, allowing the conservatory to offer a complete blackout possibility providing absolute safety and solar protection.

Rafter & Ridge
The Luciole® T-rafter roof system is composed of a wide choice of thermal-break rafters. The infill elements with a maximum thickness of 55 mm are held by gaskets, glazing beads, or cover caps.

At the outside the T-rafters have a typical look. Their inside aspect may be modified by the addition of a moulded capping simulating the effect of traditional beams.
