2D/3D object library SUPPORTMODELER™

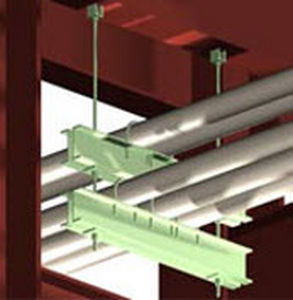

Intergraph's SupportModeler for PDS can build your company's standards into very flexible libraries of pipe support assemblies. Assembly libraries define the detailed graphics for 3D modeling, the rules for sizing and placement, and everything needed to create automatic fabrication drawings for each support in a project. Accelerate your modeling and detailing of both standard and engineered pipe supports. The software enable you to integrate the modeling of pipe hangers with the rest of the plant design. This powerful pipe support detailing package captures the engineering intent for pipe supports. Take advantage of a better quality design by automating your fabrication drawing production. SupportModeler is fully integrated with PDS, the world's best-selling 3D plant design package. For more information on purchasing any of our products or solutions, please complete our sales inquiry form. Also, stay current on company and industry news and events, technology releases, announcements, and more by subscribing to Intergraph e-Connection – our quarterly e-mail newsletter.
