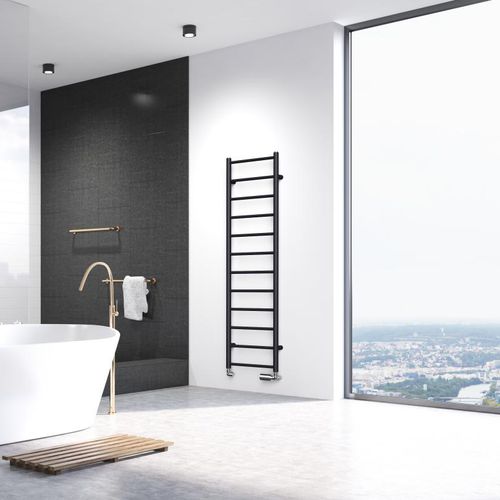

The charm of simplicity, coupled with elegance, designed for lovers of the classics. The unit's symmetrical lines will introduce an original style to any kitchen or bathroom.
Material steel pipes Ø 35 mm
steel pipes Ø 18 mm
Connection threads 4xG1/2"
Testing overpressure 1,3 Mpa
Max. operating overpressure 1,0 Mpa
Max. operating temperature 110 °C
Number of pipes 10, 12, 14
Modification options-Aura
Surface treatment-colour
Height range [mm]-420-1 860 (increase of 120)
Length range [mm]-300-600 (increase of 100)
Change dimension -additional charge 30 %1)
Standard connection (SK) -STANDARD
Middle connection (SM) -YES (additional charge)
Side connection (SB) -NO
One-sided into space fixing -YES (additional charge)
