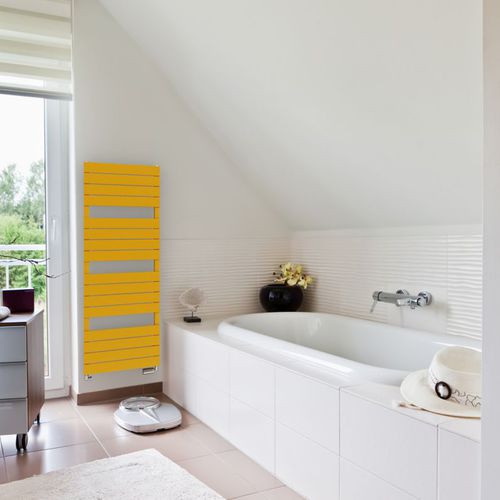

Atria is a modern bath towel radiator made from horizontal flat profiles, meaning they occupy a minimum amount of space. Simple design and functionality are typical for these wall-mounted radiators.
Their advantage is the possibility to adapt the radiator for combined or separate electrical heating or for connecting to the central heating system. They are suitable for bathrooms and other areas that need to be heated in the spring and autumn.
The radiators are typically produced in 3 sizes.
Of course they can be painted in RAL colors with both smooth and structured surfaces.
Material steel profiles 30 × 30 mm
steel profiles horizontal 70 × 11 mm
Connection thread 4 × G 1/2”
Testing overpressure 0,65 Mpa
Max. operating overpressure 0,5 Mpa
Max. operating temperature 110 °C
Numbers of profiles/pipes 8, 11, 16
Modification options-Atria
Surface treatment -colour
Height range [mm] -640-2 000 (increase of 80)
Length range [mm] -400-1 000 (increase of 10)
Change dimension -additional charge 30 %1)
Combined/electric version -YES
Standard connection (SK) -STANDARD
Middle connection (SM) -YES (additional charge)
Side connection (SB) -NO
One-sided into space fixing-NO
