ceramic shower / round
JACKOBOARD AQUA CIRCLE Jackon Insulation

{{requestButtons}}

Characteristics

  • Material:

    ceramic

  • Shape:

    round

Description

The complete solution for high quality, level access circular showers.

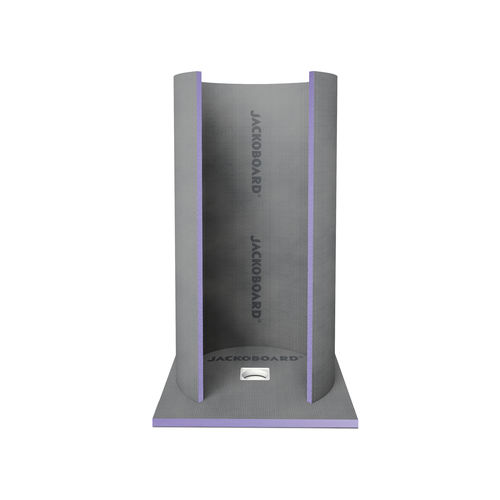

The JACKOBOARD® Aqua Circle shower element enables fast and easy construction of a visually attractive, level access, high quality circular shower. Comprising of a 5-part shower partition wall with tongue-and-groove joints, this complete solution assures impressive results with the tried and tested benefits of the JACKOBOARD® Aqua series: The elements have an extruded polystyrene (XPS) foam core and a special water-repellent coating on both sides that permits direct tiling.
Product characteristics – JACKOBOARD® Aqua Circle:
Made of extruded polystyrene foam
Water-repellent
With special coating on both sides
Tiles can be directly applied
Integral CNC-machines drainage fall
Custom sizes available on request
Excellent insulation properties λD = 0.035 W/(m·K)
Drainage flow rate 0.9 l/s
Wheelchair-accessible
Compressive strength > 300 kPa
Very low installation height
Drain can be ordered separately

Shower element:
Shower partition wall comprising 5 elements with tongue-and-groove joints
Interior wall area approx. 5.82 m²
Exterior wall area approx. 6.39 m²

Floor element:
Level access shower element with incorporated fall
Inner diameter 1000 mm
Outer diameter 1100 mm
Internal floor area approx. 0.8 m²
Milled groove for partition wall elements
