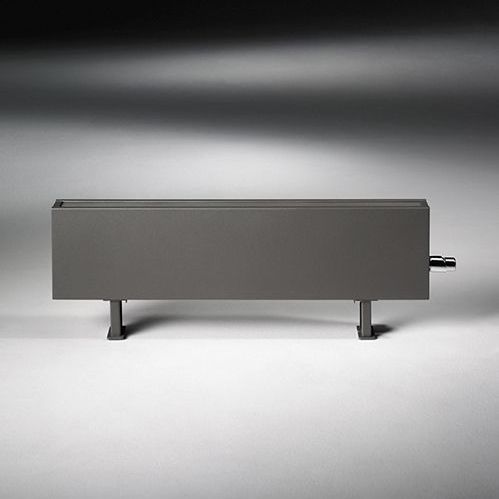

Hot water radiator MINI

751 w...1000 w1001 w...1500 w501 w...750 w

Strikingly inconspicuous For spaces with large windows, glazed façades, for window displays, conservatories, under window seats and for dwarf walls. Discreet appearance with heights from 8cm No heat radiation towards the underlying glass, so no heat loss Low-H2O technology with super conductive and ultra fast heat exchanger for low energy consumption and maximum heat emission Safe and low contact temperature Option Fixing set for shelf Number of sets for casing length: from 060 to 160 cm: min. 2 sets from 180 to 300 cm: min. 3 sets · Stable one-piece casing. · Suitable for integrated valve. · Twin Power for better compensation of the downward cold air fl ow next to glazed façades or ventilation grilles. · Safe surface temperature. · A 30 year guarantee on the heat exchanger. DELIVERY Easy to install by one person. Standard delivery : - Low-H2O heat exchanger, air vent 1/8” and drain plug 1/2” - casing in one piece for connection left or right - feet in the same colour as the radiator COLOURS Environmentally friendly, scratch-resistant, high UV resistant powder coating. Standard colours : - traffic white RAL 9016 (133), soft touch lightly structured satin lacquer - sandblast grey (001), fine texture metallic lacquer CONNECTION Standard connection : Height 008: opposite end connection, flow left or right Other heights: same end connection, left or right connection 20 70 It is not possible to connect to the wall from inside the casing, as the casing includes a closed rear panel. CONNECTION SETS Jaga H-valve to the floor for Mini height 013/023/028 for one or two pipe TRV head and sleeve couplings Eurocone 3/4” included.
