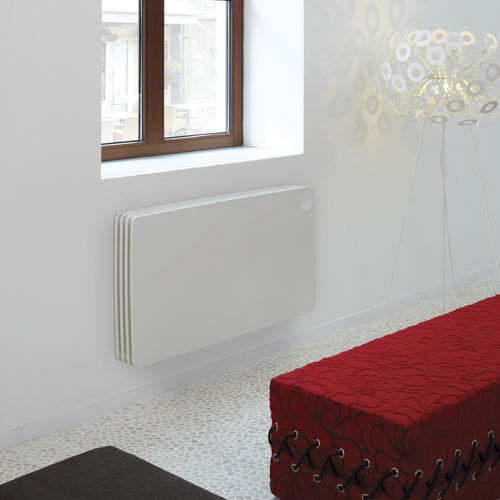

Play makes plenty of atmosphere at home. Children love this super radiator. The casing with rounded corners meets the strictest safety standards. He also finds his way to kindergartens or hospitals, and makes everybody happy.
Completely pre-assembled and mounted casing, consisting of painted MDF panels with aluminium spacer rings.
Standard pencil-proof grille, to prevent small objects or waste falling into the casing.
Integrated valve with thermostat in the front panel.
Low-H2O technology with super conductive and ultra fast heat exchanger for low energy consumption and maximum heat emission
Safe and low contact temperature
Pre-mounted connection sets
Connection to the wall
within the casing
Connection: To the wall
Type: Two pipe
KV: 0.10 to 0.6 m3/h
Control: always right hand side
Connection to the wall
via bottom of casing
Connection: To the wall
Type: Two pipe / One pipe
KV: Two pipe: 0.03 to 0.60 m3/h
KV: one pipe: 50% to 0%
Control: always right hand side
Connection: To the floor
Type: Two pipe / One pipe
KV: Two pipe: 0.03 to 0.60 m3/h
KV: one pipe: 50% to 0%
Control: always right hand side
MAX. TIGHTENING TORQUE
Precision metal tube:
Soft copper: 45-55 Nm
Semi-hard copper: 60-80 Nm
Mild steel: 60-70 Nm
Synthetic: 30-40 Nm
RPE/ALU: 20-30 Nm
Options
The Jaga Energy Saver avant la lettre, the classic among wall heaters.
Easy to assemble casing with the universally known, horizontally lined front panel.
Screens the bottom of the casing. Colour black (RAL 9005)
Mikado - Universal towel rail
A universal towel holder with unlimited possibilities. Attached to bathroom or kitchen furniture or simply on the wall.
