Modular formwork METACINTRE PR

circularsteelwall

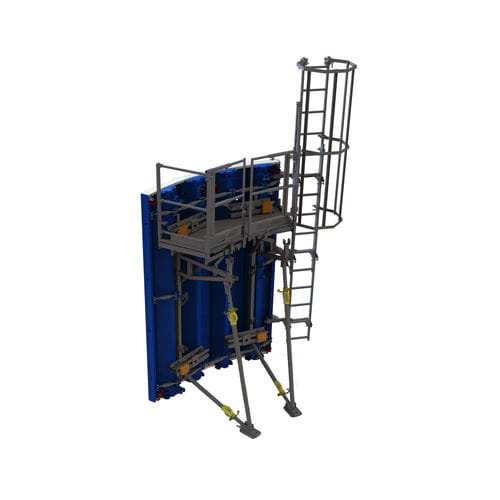

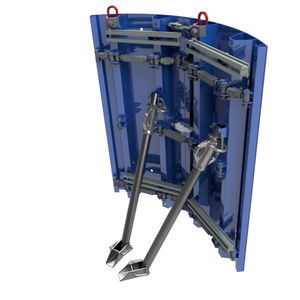

These tools are ideal to build some circular walls for buildings and public works. These tolls are ideal to build stairwells and small radius circular works. The rage of radius of this tools is : minimum internal radius 1 meter to 3 meters. The molding face is made of steel of 5mm thickness. Acceptable pressure is: 8 Tons/m² with use of stalk of tightening of Ø23mm. The juxtaposition assembly is made by integrated crowbars and for superimposing by integrated autocentreur bolts. The 3 meters formworks have there Foldable integrated galvanized evolutionary safety platform. The tools of 1.50 meter high can receive a galvanized evolutionary safety platform. The dimensions of the tools are: large = 2.20 et 2.50 meters, high = 0.50, 1.00, 1.50 et 3.00 meters. The weight of the tools is approximately = 170 kg/m²
