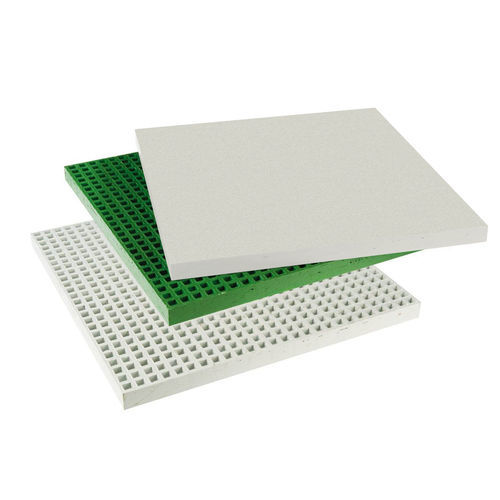

FRP gratings for industrial floors and floorings are used in a wide variety of sectors. From the food and pharmaceuticals industries to car and aircraft manufacturers and other sectors besides, JK-Fib fiberglass gratings are the solution to all your needs.
THE BENEFITS OF FRP GRATINGS FOR INDUSTRIALS FLOORS AND FLOORINGS:
Ease of use: FRP gratings can be cut to size on-site (bandsaw, chainsaw, etc.)
Light weight makes them easy to handle.
Load-bearing both ways up,
Highly resistant to corrosion, weather and UV radiation,
Safety: concave or siliceous non-skid R13 for added stability,
Quick assembly with specific retaining fasteners available from stock,
Custom and stock gratings available at very short notice.
MESH CENTRE DISTANCES
JK Technic has a range of FRP gratings with different mesh types on offer:
38 x 38 - 26 x 26 - 50 x 50 - etc...
Security bars: 19 x 19.
BEARING BARS
Standard dimensions: 30 / 7; 38 / 7 and 50 / 7 mm.
STANDARD PANEL DIMENSIONS
1000 x 2026 mm.
1000 x 3055 mm.
1220 x 3055 mm.
STANDARD DIMENSIONS STAIR TREADS WITH GRITTED FRONT EDGE
800 x 275 mm.
1000 x 275 mm.
1000 x 350 mm.
FINISHES
Concave.
Grit.
Entirely grit-covered surface.
