Electro-forged grating PRESS-WELDED

steelfor stair treadsnon-slip

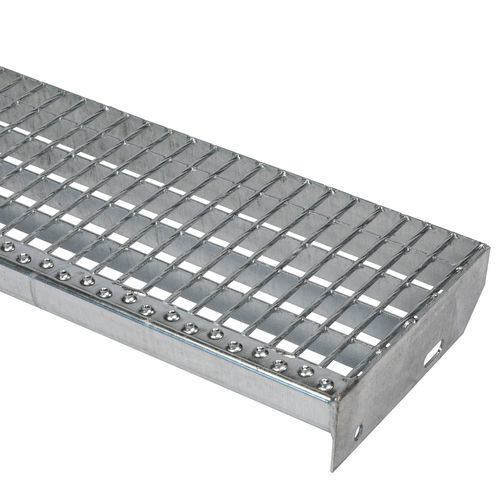

JK Technic press-welded staircase steps are manufactured with a non-skid perforated nose and lateral covers with standard piercing or custom piercing on request. Used in industrial fields for their security mesh and without single notching (on request), JK Technic's staircase steps are suitable for all your projects. They can be used for straight staircases, balanced steps or even for spiral staircases. SEVERAL FINISHES AVAILABLE : Untreated steel Power-coated steel Galvanized steel MESH The mesh spacing is defined in accordance with the standards and loads that must be respected: Standard meshes: 30x30, 30x44, etc... Standard security meshes: 19x19, 19x40, 30x19, etc... EDF mesh: 30x27. Other options are available on request. BEARER BAR Standard height: 25-60 mm. Standard thickness: 2-5 mm. Other options are available on request. CROSS BAR Twisted square: 4-6 mm. Smooth rounded configuration available on request. DIMENSIONS Maximum length of bearer bars: 6100 mm.. Maximum length of twisted squares: 1000 mm, or greater on request. MATERIAL S235JR steel as per EN 10025 standards.
