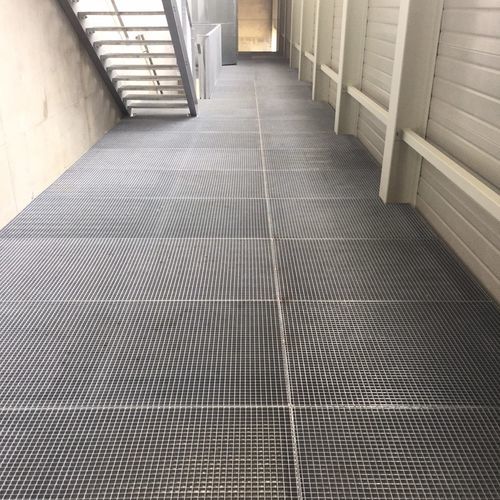

Contemporary architecture is part of our daily lives. Whether in town or in the country, monuments and buildings are decked out in a modernist style that appeals to the imagination. The equal height of the insert bars and bearer bars of full gratings will add visual appeal to your construction and will help create the coherent appearance you desire.
FINISHES AVAILABLE:
Untreated steel
Galvanized steel
Stainless steel
Aluminium
Powder-coated
MESH
The mesh spacing is defined in accordance with the standards and loads that must be respected:
BB thickness of 2, 3, 4 and 5 mm
The BB spacing is typically a multiple of 11.
The IB spacing is typically a multiple of 11.1.
BEARER BARS AND CROSS-BARS
Standard heights: 20-140 mm.
Standard thickness: 2-9 mm.
DIMENSIONS
Maximum length of bearer bars: 4000 mm.
Maximum length of spacers: 2000 mm.
SURFACE TREATMENT
Galvanised in accordance with EN ISO 1461 standards.
This product may be ordered in 304 & 316 stainless steel
This product may be ordered in aluminium.
FINISH
Available with "flat" edge or without edges
Available with single or double notching on request.
HALF-MOON or SAWTOOTH notching available.
