Panel curtain wall GESCHAFTSHAUS THURGAURE STRAßE

glassstone

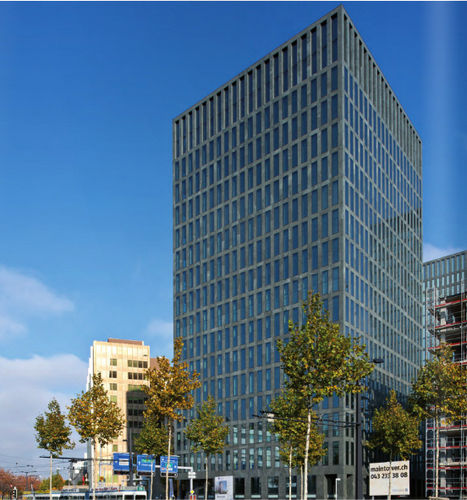

The 60 meter high Thurgauerstrasse office building is part of the „Quadro“-Ensemble the new landmark in Zurich North, in Zurich- Oerlikon. The distinctive building which can be seen from far off is located close to Zurich Airport and the Exhibition Centre. The building envelope consists of a double skin exhaust air façade made of glass and natural stone in combination with a ventilation system. The façade has been carried out completely as a unitised system and was supplied, delivered and installed including the natural stone cladding. The façade area of the unitised system measures 8,500 sqm. The 60 m high tower is 68.12 m long and 27.62 m wide. It comprises four basement floors, a ground floor and 16 upper floors. Scope of Work 8,600 sqm Air flow façade, with storey-high tilt windows and with two inner maintenance and cleaning leaves
