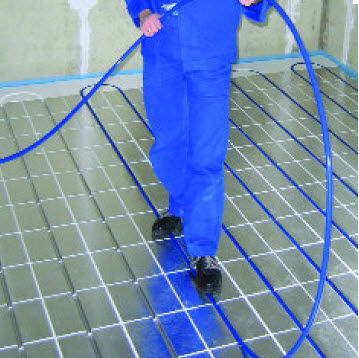

The JUPITER IDEAL underfloor heating system is a 'dry installed' panel based system consisting of 30mm thick EPS 035 polystyrene elements with integral aluminium heat diffusion plates. Dry installed means that no screed is required which in turn leads to faster installation and quicker heating up times.
There are two types of panel, Central Zone (CZ) panels with 2 pipes and Edge Zone (EZ) panels with 4 pipes. CZ panels are used in main living areas and EZ panels are used near large areas of glazing, bathrooms or simply when higher heat output is required. The 'pre-scored' panels are 1000 mm x 500 mm and can be 'snapped' to fit on site.
